APEX

Control & Monitoring for All

  • Monitor Critical Parameters

  • Automate Equipment Function

  • Set Alerts and Alarms

  • Control with Apex Fusion

Apex Series
A3 Series Apex Controllers

Monitoring and Control Solutions for Every Aquarist!

An Apex monitored aquarium is a successful aquarium! Introducing the exciting all-new A3 Series of Apex controllers. From the Jr. to the Pro, Apex has a solution for every aquarium level.

Apex Pro

Apex Pro

Ultimate control for any serious control freak.

Our A3 Apex Pro System offers the most complete experience of monitoring and control for the discerning aquarist.

Apex

Apex

Core control and everyday monitoring.

The A3 Apex System offers the control but scaled back monitoring with room to grow for the everyday aquarist.

Apex Jr

Apex Jr.

Monitoring for all, control ready.

Introducing A3 Apex Jr.: your monitoring-only solution that evolves to full control when you’re ready, tailored for aquarists.

Which Apex is Right for Me?

Apex Pro Apex Apex Jr
I want to monitor my aquarium at any time from any device. Check Check Check
I want to monitor critical parameters, like temperature, to protect my tank. Check Check Check
I want to be alerted by text, SMS or email when parameters are out of spec. Check Check Check
I want to know if power of Wi-Fi connection is lost to my aquarium. Check Check Check
I want to be alerted to a possible overflow or leak in or around my aquarium. Check Check Check
I want to be able to automate equipment to respond to parameter changes or emergency situations. Check Check Expandable
I want to know that my equipment is operating efficiently and correctly. Check Check Expandable
I want to know the relative cleanliness of my aquarium water. Check Expandable Expandable
I want to remotely check the exact water depth in my sump and reservoir. Check Expandable Expandable
I want to be able to easily connect other Apex-ready switch boxes and devices. Check Expandable Expandable
I want to be notified or control action based on water above or below a certain level. Check Check Check

Check Included   Check Sold separately

APEX PORTS

Almost endless connectivity, creating a truly modular experience.

Apex Pro Ports

Apex PRO

APEX

Apex Ports

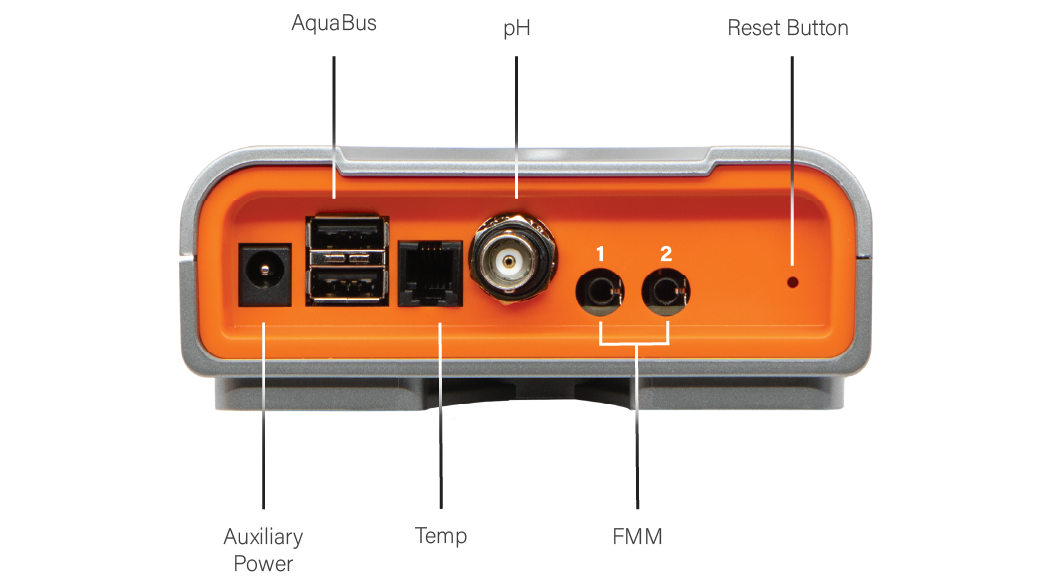

Apex Jr Ports

Apex Jr

WIRELESS INTERNET-READY!

When possible we recommend the superior reliability of a wired network connection for your Apex or Apex Pro, however when that’s not possible your Apex is perfectly capable connected on WiFi.

WiFi
So, for this Apex we spent countless man-hours developing an incredible 802.11g/n Wi-Fi connection with reliability that rivals a wired connection.  And, the connection process to your home network is amazingly simple – getting you set up and on the Apex Fusion cloud service in just a couple of minutes!

What’s Included?

Apex PRO Apex Apex Jr
Temperature Monitoring Check Check Check
pH Monitoring Check Check Check
ORP Monitoring Check
Salinity Monitoring Probe Available Separately
FMM Input Ports 4 3 2
Controllable Outlets 8 8
1LINK Outputs 3 3
DC 24V Outputs 2 2
Digital Inputs 6 6
Audible Alarm Buzzer Check Check Check
Wi-Fi Check Check Check
Hard-wired Ethernet Check Check
Liquid Level Monitoring Check
Leak Detection Optical Analog Analog
Variable Outputs (0-10V) 4
Optical Sensor Check Check
Expandable Check Check Check

APEX WATER ACCESSORIES

Temperature Probe

Temperature Probe

Keeping a stable and consistent temperature in the aquarium is paramount to the health of your inhabitants. Monitoring temperature and especially temperature changes throughout the day is mission critical.

Having a quality temperature monitoring solution that also alerts you to over or under temperature situations is a must for a successful aquarium.

Included with

Apex PRO
Apex
Apex Jr

pH Probe

Keeping pH stable is critically important to healthy coral in a reef aquarium. A stable pH is also less stressful for all the aquarium’s inhabitants.

Monitoring pH not only allows you to tune in desirable parameter stability but also serves as an important warning system to warn you of negative chemistry changes.

Included with

Apex PRO
Apex
Apex Jr
pH Probe
ORP Probe

ORP Probe

Oxidation Reduction Potential (ORP) is the measurement of water cleanliness. ORP level indirectly indicates the ability of beneficial bacteria in the aquarium to reduce contaminants like nitrates, ammonia ECT. Ultimately it is in part a measure of the electrical charge available to break down these contaminants.

Sudden changes in ORP are often reflective of organically bad things happening the aquarium. If a fish passes or too much food is available, the change in ORP can prove to be a much needed signal to investigate or take action.

Included with

Apex PRO

Optical Leak Sensor

The Optical Multi Surface Leak Sensor is an improved version of the Solid-Surface Leak Sensor (LD-2).

Improvements include an epoxied design that allows the sensor to be utilized repeatedly and an optical sensor that allows the sensor to be placed on any surface including metal and epoxied cement floors without returning a false activation.

Included with

Apex PRO
Optical Leak Sensor
Solid Surface Leak Sensor

Solid Surface Leak Sensor

When it comes to water on the floor, time is critical. Upon contact with liquid this sensor will communicate to your Apex to send an alert or trigger other actions.

With a wire length of 5 meters (16.3ft) this sensor is a must have for placement inside and outside of your sump.

Protect your aquarium and your home

Included with

Apex
Apex Jr

Optical Sensor

Think smart float switch. The optical sensor indicates the presence of water above or below the sensor location.

The Magnetic Optical Sensor features an improved look and feel. The sealed housing and magnetic mounting design prevent water incursion and make mounting quick and easy.

Included with

Apex
Apex Jr
Optical Sensor
Liquid Level Sensor

Liquid Level Sensor (LLS)

How much water has been added? How much solution is left? Until now the only way to find out was to measure it yourself.

New to aquarists, and exclusive to Apex, is the ability to specifically measure water depth in inches or centimeters. Available in four different sizes- 4″, 15″ 23″ and 35″ there is a perfect length for water level monitoring in, aquariums, reservoirs, and liquid containers.

Take level monitoring to the next level with the LSS.

Included with

Apex PRO

LIMITLESS POSSIBILITIES…

Neptune Trident

TRIDENT :: MARINE AQUARIUM WATER ANALYZER

The Trident is an automated water testing system that regularly tests alkalinity, calcium, and magnesium in your saltwater aquarium.

Learn more

DŌS :: DOSING AND FLUID METERING SYSTEM

The DŌS has the ability to deliver additives from drops at a time to gallons.

Learn more

DŌS :: DOSING AND FLUID METERING SYSTEM

The DŌS has the ability to move up to 20 gallons of water over a period of 24 hours.  One pump removes old water and another adds new water from a reservior.

Learn more

AFS :: AUTOMATIC FEEDING SYSTEM

Feed your fish consistently, and safely, while home or away.

Learn More

ATK :: AUTOMATIC TOP-OFF KIT

The ATK (Automatic Top-off Kit) is a simple, standalone, and complete solution for replacing water lost to evaporation.

Learn More

COR :: INTELLIGENT RETURN PUMP

Your return pump is by far one of the most important piece of equipment on your aquarium. It circulates the water intelligently, quietly, and efficiently to keep your aquarium thriviing.

Learn More

WAV :: EXTREME FLOW FOR YOUR AQUARIUM

A power head built to deliver a momentous flow in a small, elegant package.

Learn More

FMK :: FLOW MONITORING KIT

Fine tune flow and turnover per hour with our variety of flow meters.

Learn More

GRO :: MACROALGAE LIGHT

The GRO is a specialized, 20W LED light designed to grow many types of common macroalgae (i.e. Chaetomorpha) using a specialized light spectrum that maximizes photosynthesis.

Learn More

ENERGY BAR 832 – THE ULTIMATE POWER CONTROL HUB

Included with

Apex PRO
Apex

Energy Bar

When we decided to create an Energy Bar for this new Apex,  we designed it from the ground up.  Not only does the Energy Bar 832 have eight 120V AC outlets, but it includes an internal 100W 24VDC power supply as well. That power supply feeds three built-in 1LINK ports as well as two 24VDC accessory ports.

And, each individual outlet has independent power monitoring and there are individual LED indicators for each outlet. Read on and watch the videos for more info.

Your safety is important to Neptune Systems. This is why we design every product to established safety standards. In the case of the Energy Bar 832, and given it is a line-voltage device, we have taken that a step further and actually obtained ETL certification by Intertek, a nationally recognized testing laboratory. Click here for more details from Intertek on this certification.

For years we have been asked to provide power monitoring of the individual devices connected to each outlet – but it just wasn’t possible without pricing the product out of the range of most consumers. Now it’s here and with comes tons of benefits.

With this power information regularly monitored, you now know when your pump, skimmer, powerhead, UV, or any other device is not operating normally and an alert message can be sent. This enables you to catch issues right when they happen – or better yet when they are on the road to failure.

Also, for many of us the cost of the electricity to run a successful aquarium is a major concern in our household.  Even for those where electricity is cheap, we believe most aquarists care a great deal about their energy consumption and its effect on the environment. Ironically, our energy usage could be directly connected to excess greenhouse gasses, the warming of the oceans, and the bleaching of the corals!

However, armed with this power usage information, we believe aquarists will not only be able to make operating and purchase decisions that will save them hundreds of dollars a year, but they will also be able to reduce their carbon footprint.

This Energy Bar has a built-in 100W, 24VDC power supply that can control up to three Neptune Systems 1LINK products like the WAV and DOS.   It also includes two switchable 24V DC on/off outlets that are compatible with any 24V device under 30W and Neptune Systems 24V accessories like our Practical Multi-purpose Utility Pump (PMUP) and solenoid valve.

Each Energy Bar AC outlet as well as the two 24VDC accessory ports have their own status LED. This LED tells you when that outlet is energized. The LED will also blink rapidly if a device is plugged in that exceeds the current capability for that outlet.

Since the Apex is receiving continual power usage data from the Energy Bar 832, it can be configured to send you notifications when a device is not using power as it should be. An example would be a return pump showing no power consumption when the outlet is on. Or, tell you when a skimmer has a clogged airline because power consumption will show differently than normal operation. These high and low limits are completed customizable by individual outlet.  You can even use this power data to control other devices.

Times have changed and it is fairly uncommon now for aquariums to have AC devices that must be cycled on and off continuously. This means that we could now switch all AC outlets to relay switching.

13

Total power connections for your aquarium devices

8

120V AC Outlets all switched with relays rated for millions of cycles

3

1LINK 24VDC Smart outlets for devices such as WAV, DOS, etc.

2

Switchable 24VDC outlets for accessories such as small pumps, solenoids, fans, etc.

IMPORTANT NOTE FOR INTERNATIONAL CUSTOMERS

The EnergyBar 832 is for use in North America (USA, Canada, and parts of Mexico) and other locales where the electrical service grid provides 120VAC 60Hz power.  For sale in international regions which use 230VAC 50Hz power, Apex systems are bundled with an EnergyBar 632 equipped with 6 outlets specific to that region (UK, EU or Schuko).

SETUP HAS NEVER BEEN EASIER

From the moment you open the box you are guided along every step of the way from what is in the box, getting connected to your network and setting up the monitoring and control of your aquarium.
